Discover the Scylon
SCYLON GENERATION 2
Engineered for aerodynamics, speed, and precision handling. Featuring advanced carbon fiber technology, full cable integration, and ultra-efficient power transfer.
Scylon delivers maximum performance on any ride. Dominate climbs, sprints, and breakaways.
A Legend Reborn
Six Performance Characteristics
We set out to advance all six performance characteristics (weight, aerodynamics, stiffness, strength, ride quality and craftsmanship) that made the original Scylon unique.
Advanced Materials
25 Years of Composite Braiding
After a thorough review of our 25 years of composite braiding excellence, using 54 braid configurations and 18 different fibers, it was clear that advanced materials would be required to hit our targets for Scylon Gen 2.
We set out to maintain the legendary stiffness, durability and ride quality of the original Scylon while delivering an aerodynamically enhanced frameset with full cable integration that weighs under 900 grams raw.
Generation 2

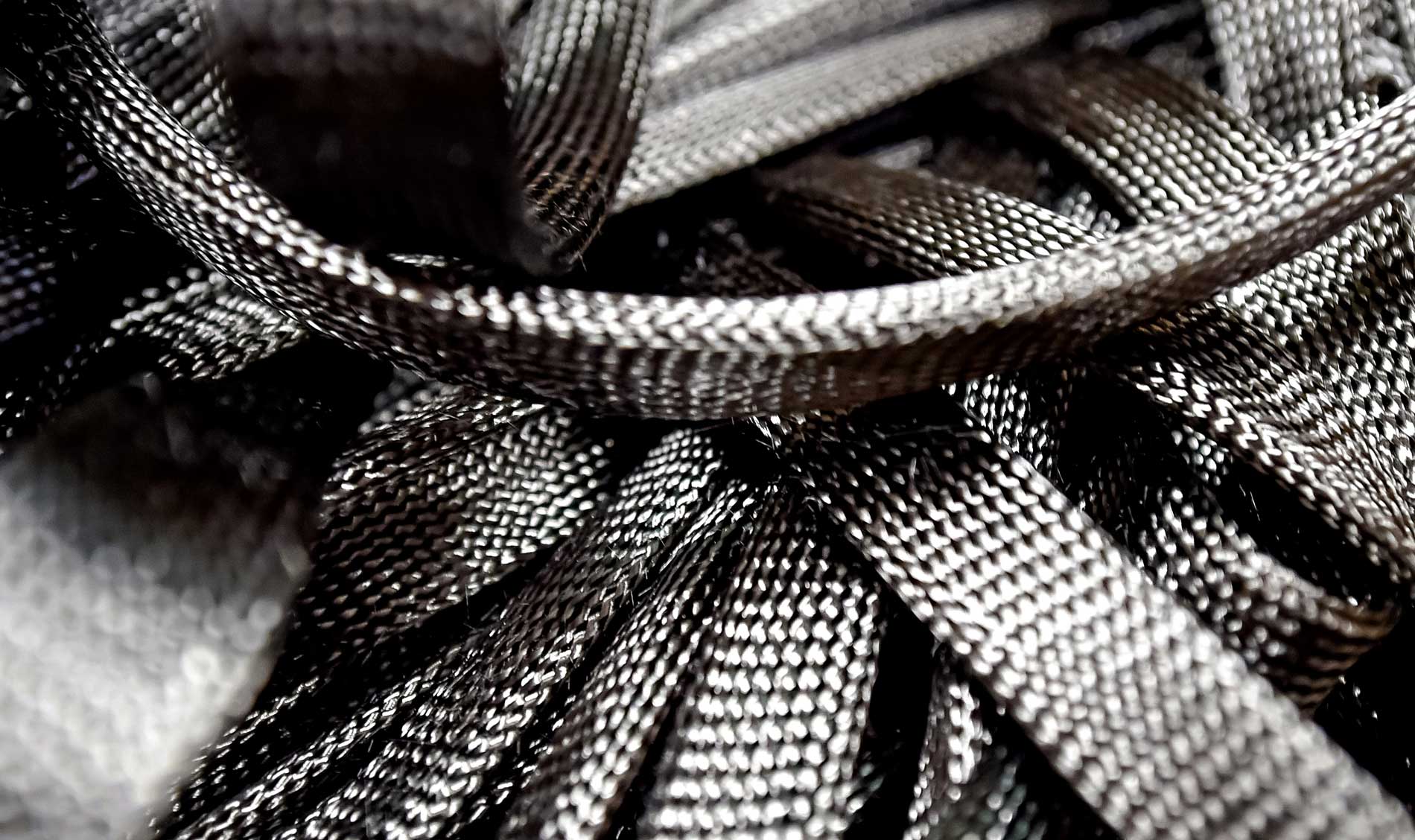

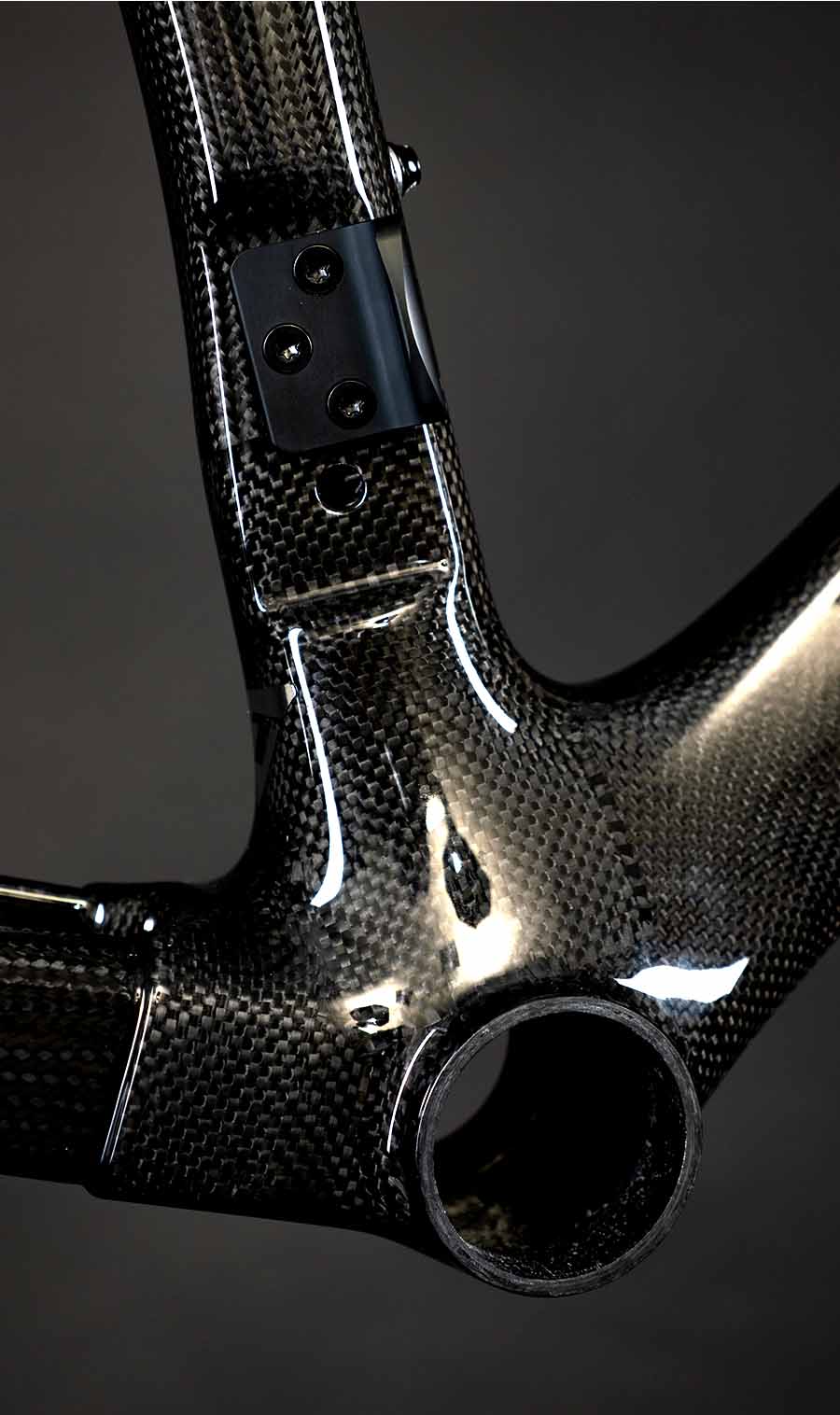

Braiding Technique
The Scylon Gen 2 features a continuous braid topology that starts at the bottom bracket and extends through the front triangle, creating an unbroken carbon fiber structure for exceptional strength and performance.
Additionally, the Gen 2 layup incorporates Directional Morphing, allowing carbon fibers to be precisely aligned at angles from 45 to 30 degrees within a single braided layer, ensuring optimal material placement for maximum efficiency.

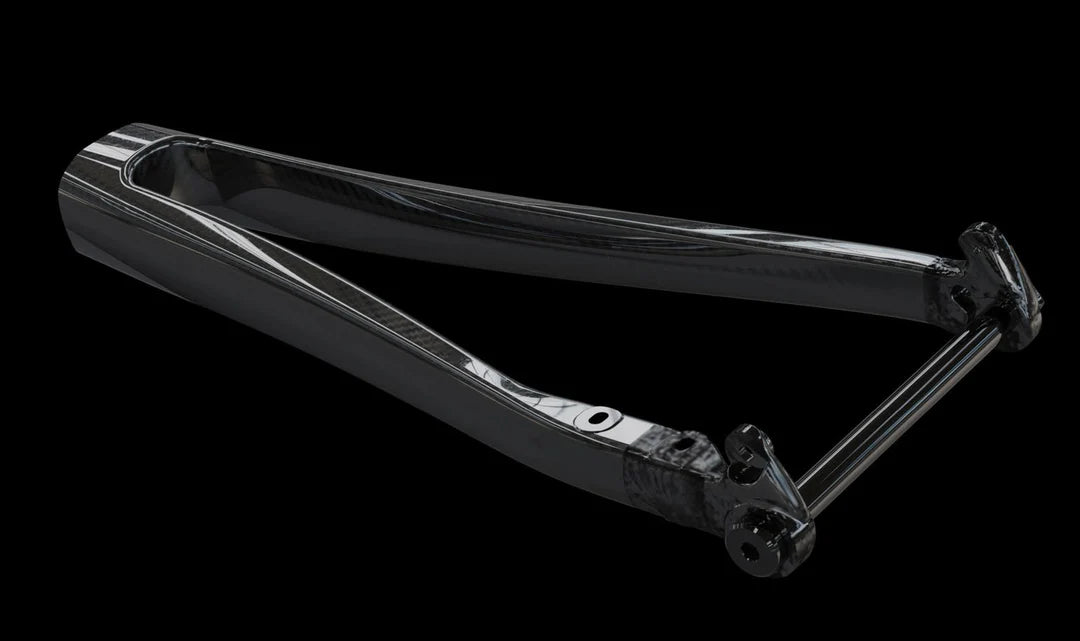

Powerbox
Chainstay System
The distinctive one-piece chainstay system is at the heart of the performance and handling of the original Scylon.
For Scylon Gen 2, we constructed the entire Powerbox system from ultra high modulus fibers reducing the component weight by 20% while retaining the exceptional performance characteristics of the original and increasing the tire clearance to 32c.
DRAG + STIFFNESS
Optimized Shaping
Balancing aerodynamics, weight, and stiffness is challenging. Increasing tube profiling adds weight, while narrowing frontal areas can affect stiffness and durability.
For the Scylon Gen 2, we focused on tube shaping to reduce drag without sacrificing stiffness. We kept the classic airfoil-shaped downtube and seat-tube, enhancing them to meet the demands of modern road racing while maintaining the lightweight, responsive handling TIME is known for.
No gimmicks — just pure speed.

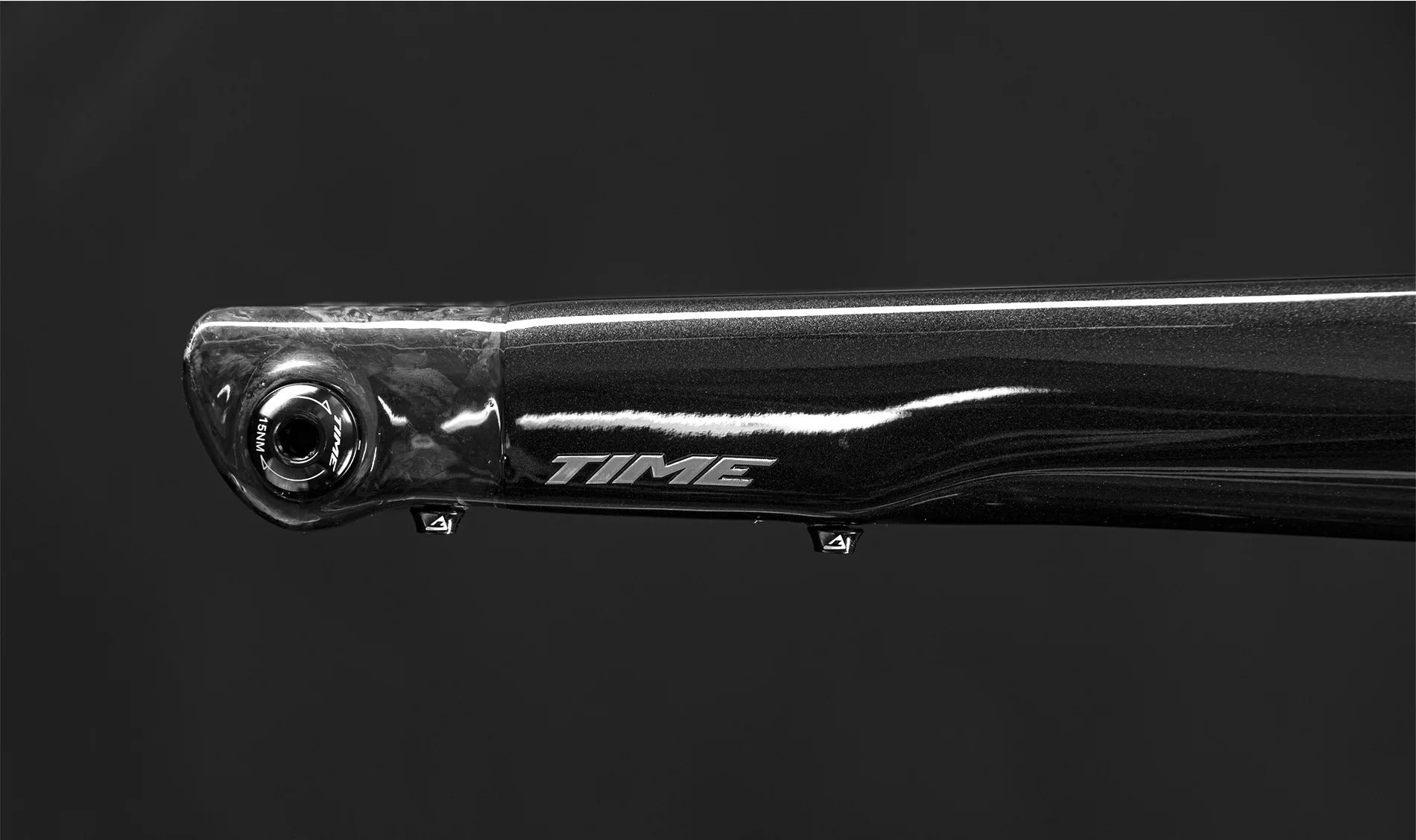

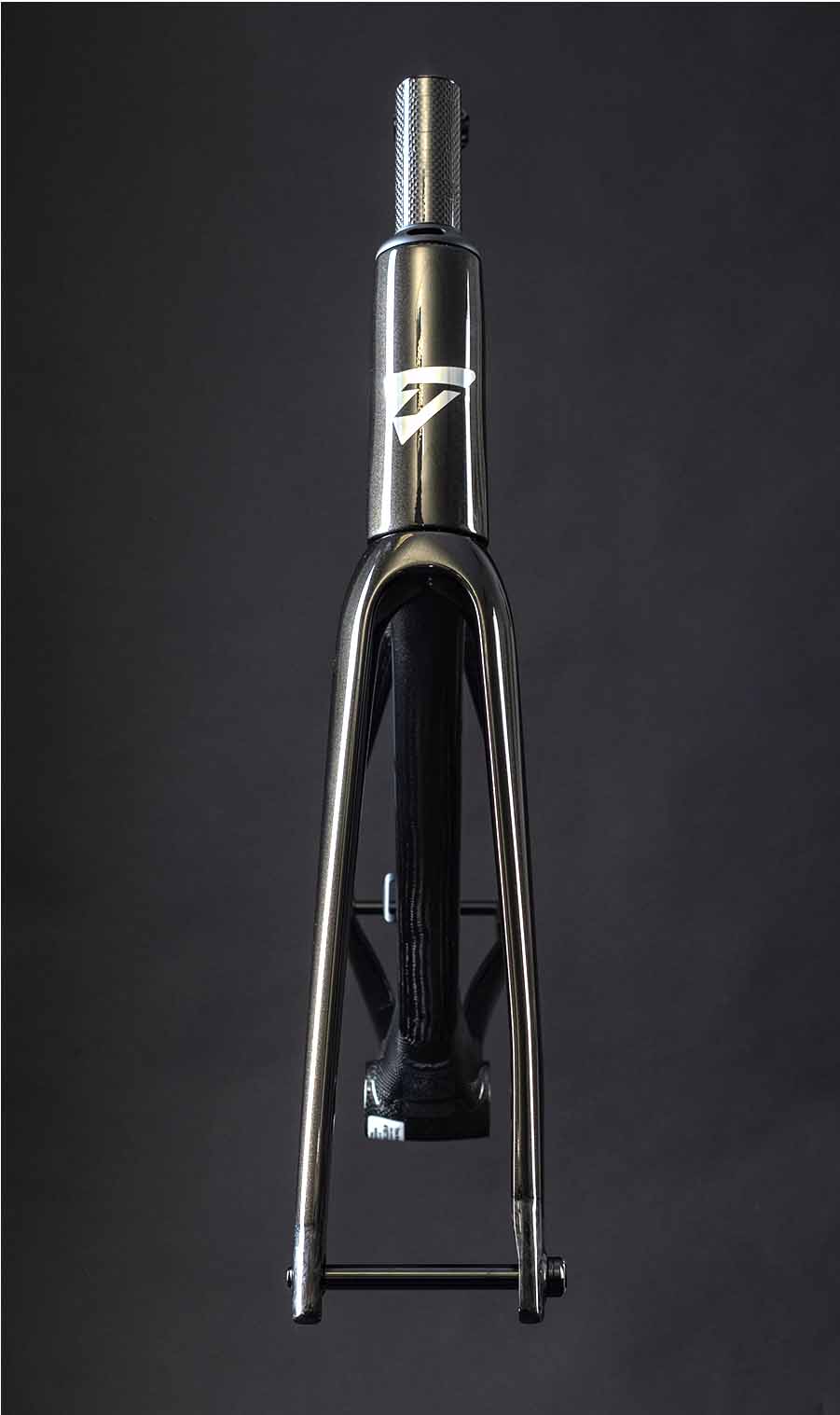

INTEGRATED AERO FORK
Optimized Shaping
With 25 years of fork manufacturing experience, we’ve created a fully integrated fork for the Scylon Gen 2.

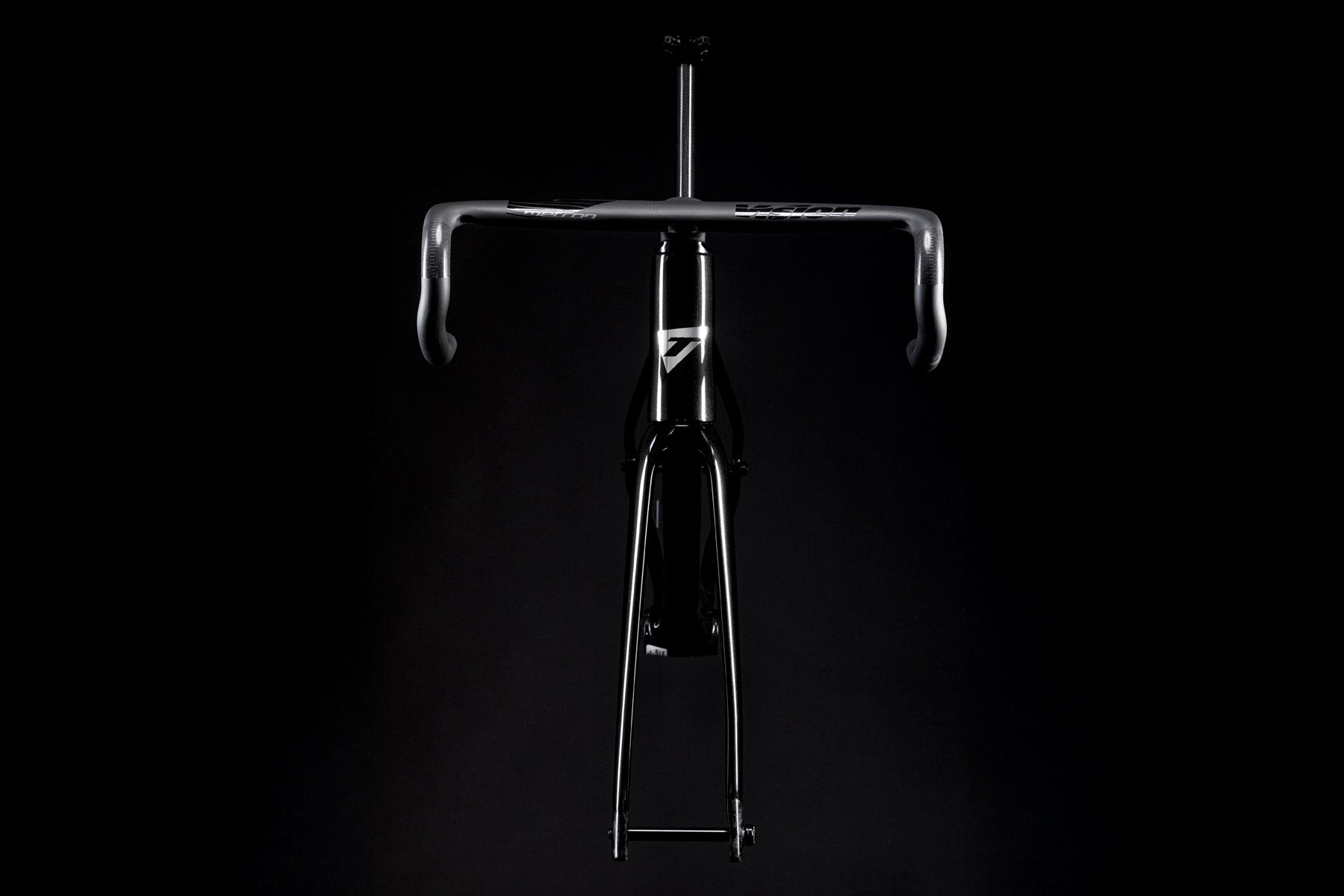

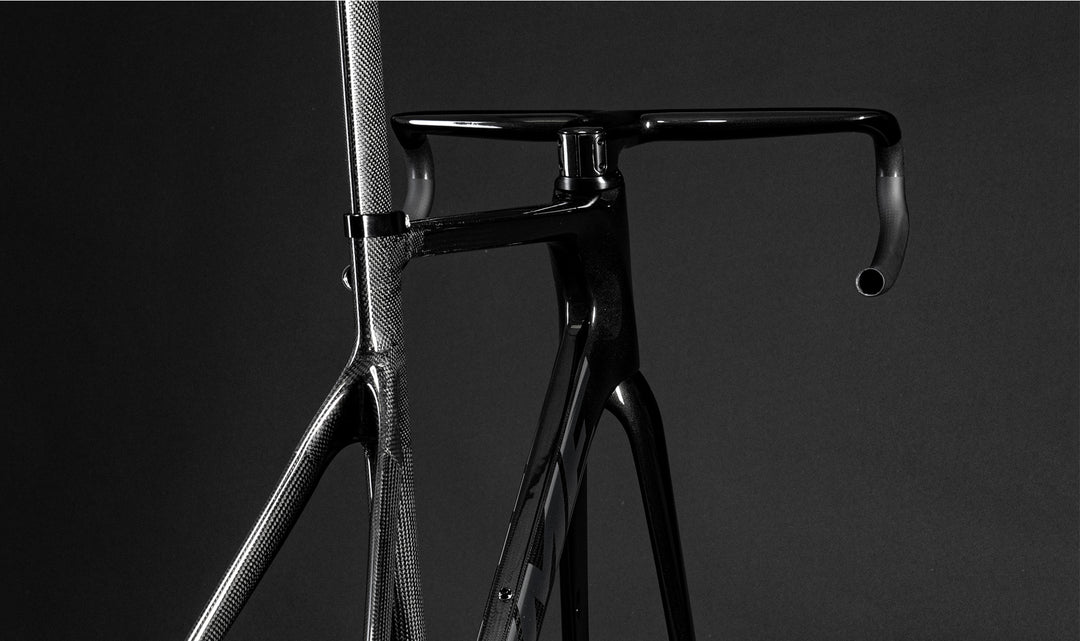

AERO INTEGRATION
Open Source Flexibility
Designed to be the most open source and flexible solution, the Scylon Gen 2 is supplied with an FSA integrated headset system and SRS top cap. This system allows usage of any semi-integrated or fully integrated cockpit or handlebar / stem configuration.
Numerous aftermarket headset bearings and top cap solutions are compatible.
While we love the aesthetics of integration, we understand the complexity within the market and have chosen a solution that allows TIME owners the ultimate flexibility, fitting solutions and rider experience.
ENHANCED SADDLE ERGONOMICS

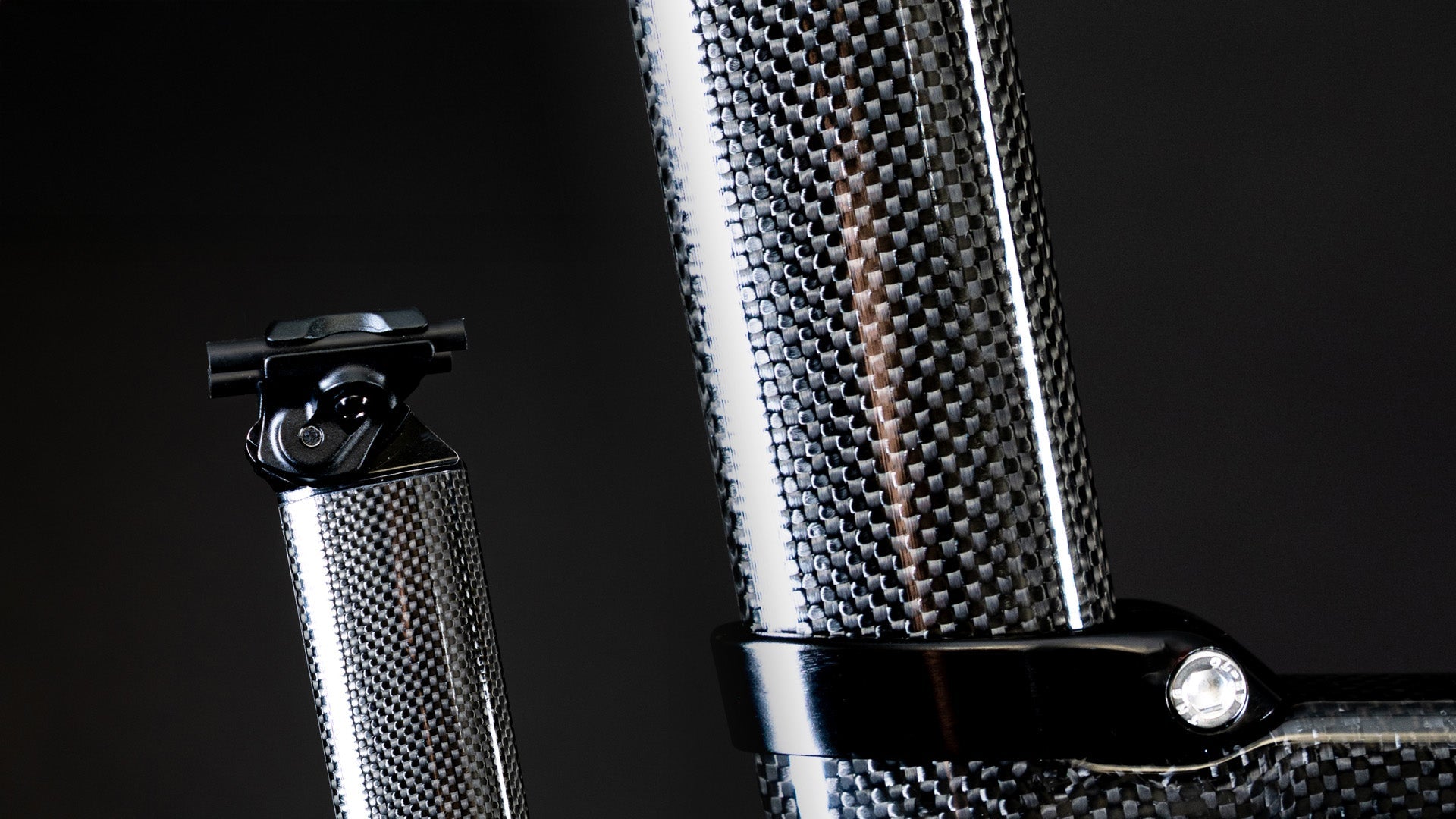

New Scylon Seatpost
Produced using the same materials and technology as the Scylon Gen 2, the new seatpost system allows for perfect integration and aesthetics. The new seat rail clamping system is a patented design that allows for both a -20mm and a +10mm offset allowing the cyclist a massive range of fore-aft adjustability.
Compatible with all 7mm round and 7x9mm oval seat rails regardless of material.

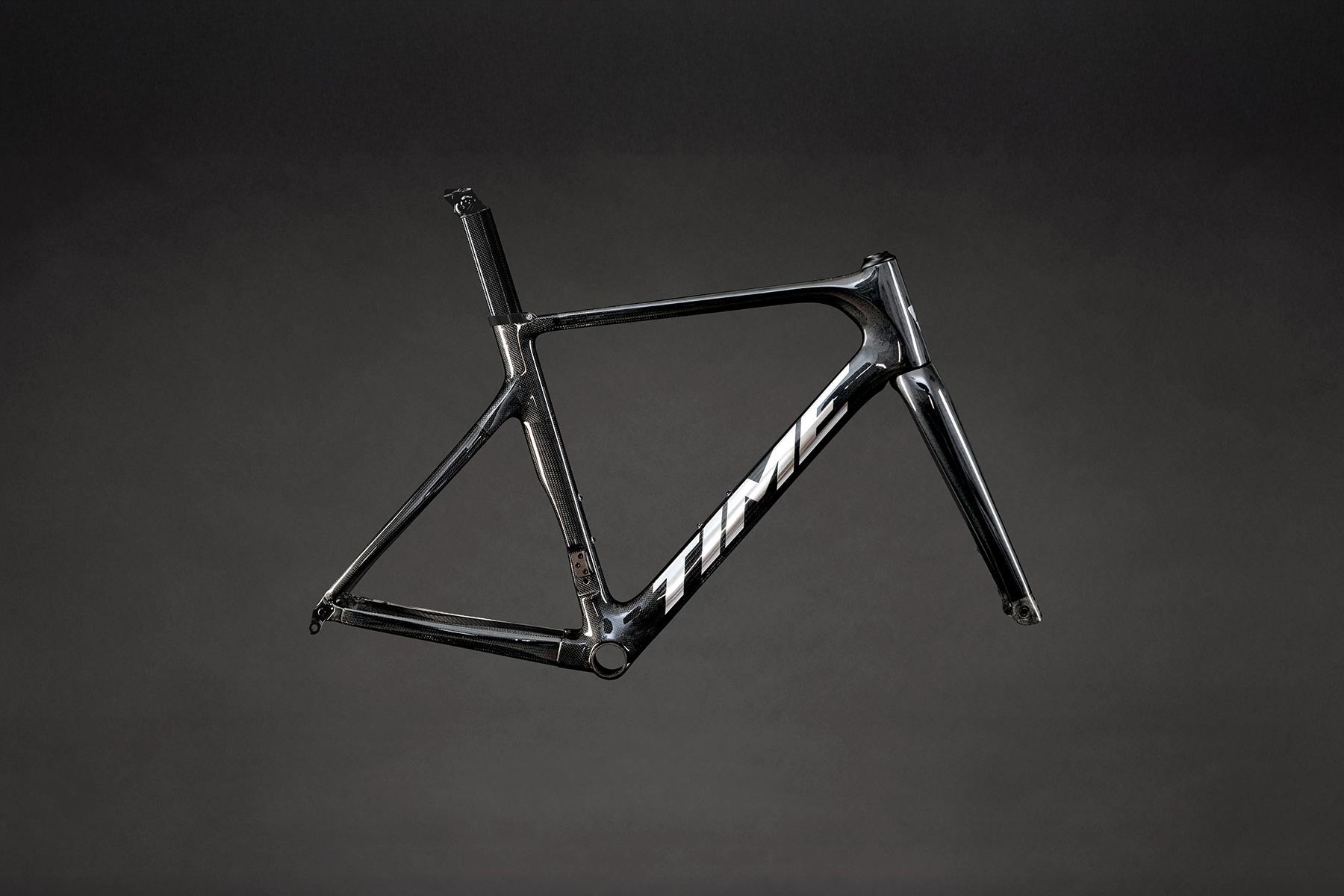

Scylon Geometry
SCYLON Frame Specs
| SCYLON (GEN 2) FRAME SPECIFICATIONS |
|
|---|---|
|
FRAME MATERIAL Gen 2 BCS M46J / T800 Carbon Fiber Layup |
THRU AXLES 12x120x1.5mm pitch F, 12x159x1.5mm pitch R |
|
SIZES XXS, XS, SM, MD, LG, XL |
SEATPOST DIAMETER Proprietary SCYLON Aero Carbon, -20/+10mm SB |
|
FORK STEERER TUBE Kevlar Enhanced BCS Carbon Fiber - Tapered 1–1/8” to 1–1/2” |
SEATPOST CLAMP Semi-Integrated TIME Alloy |
|
HEADSET BEARINGS FSA Headset/SRS Topcap for Semi & Fully-Integrated Cockpits |
SHIFTING Compatible with all Electronic Shifting Systems |
|
WHEEL SIZE 700c |
FRONT DERAILLEUR Standard Mount |
MAXIMUM TIRE WIDTH
|
REAR DERAILLEUR Standard Mount |
|
BOTTOM BRACKET PF 386 EVO |
BRAKE TYPE Front and Rear Flat Mount Disc |
|
DISC HUB STANDARD 12x100mm F, 12x142mm R |
ROTOR SIZE 140/160mm with Adapter |
| WHAT'S INCLUDED |
|
|---|---|
|
FSA Headset/SRS Topcap for Semi & Fully-Integrated Cockpits |
Front and Rear Thru Axles |
|
Alloy Bottle Bolts |
Semi-Integrated Seatpost Clamp |
|
Scylon Aero Seatpost |
Front and Rear Derailleur Hangers |
Pre-Order Your Scylon Now
The all-new TIME Scylon is almost here — crafted for elite aerodynamics, precision handling, and ultimate speed. Engineered with our next-gen carbon fiber technology, this bike is designed to push limits and redefine performance. Be the first to experience the future of speed. Sign up now for exclusive early access, insider updates, and a chance to reserve yours before anyone else!
