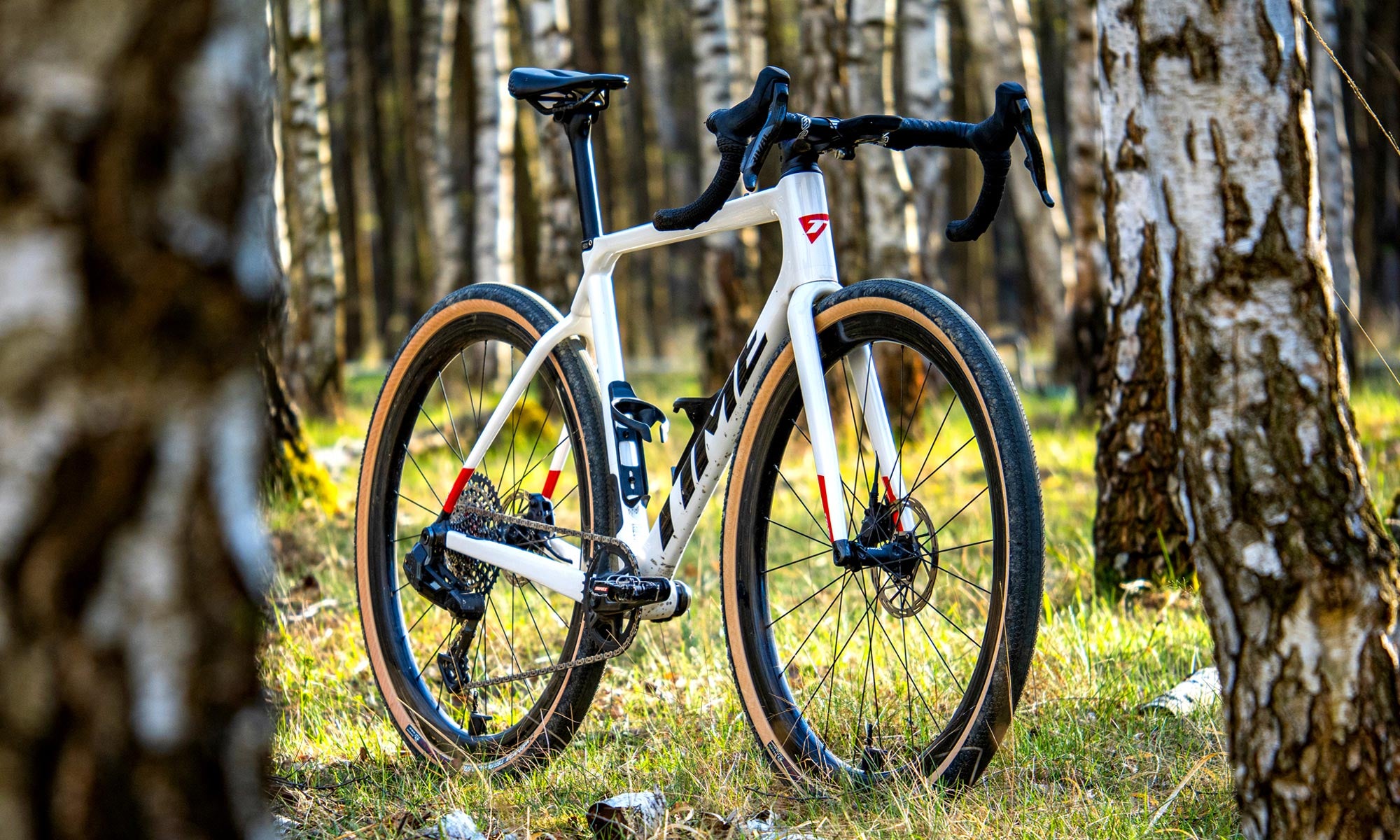

FULL-ON GRAVEL SLAYER

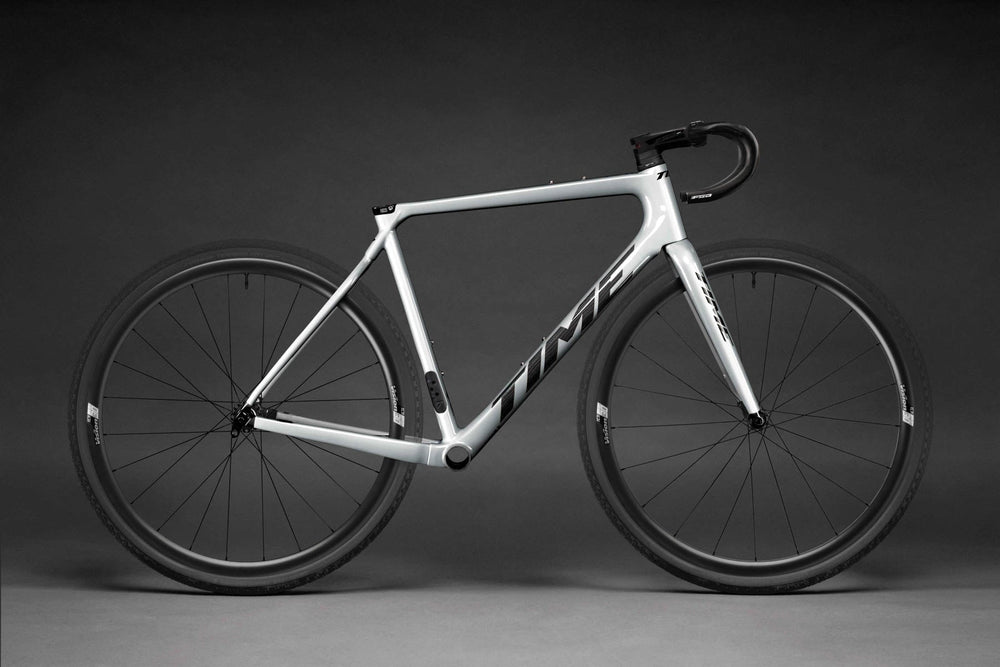

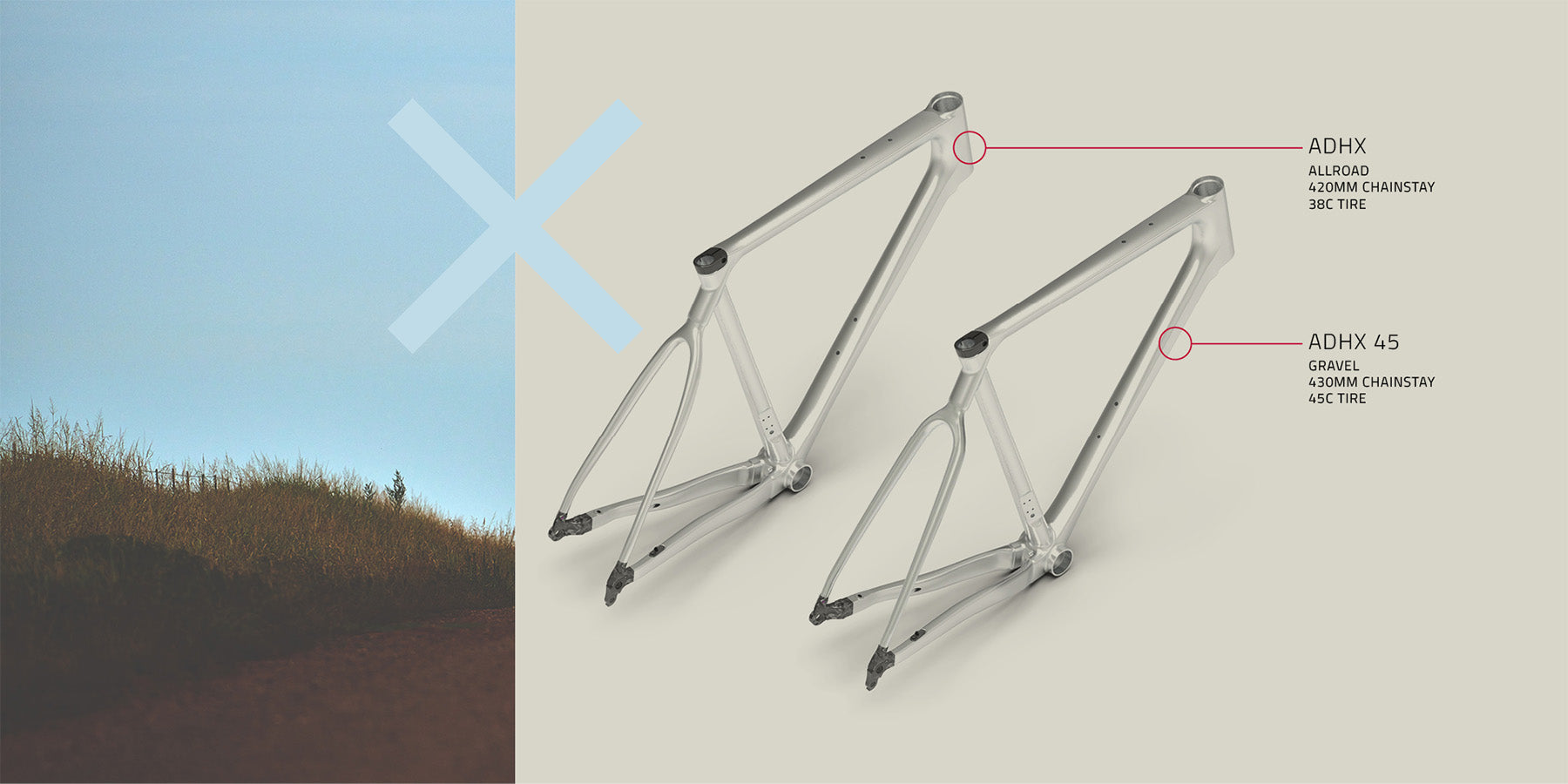

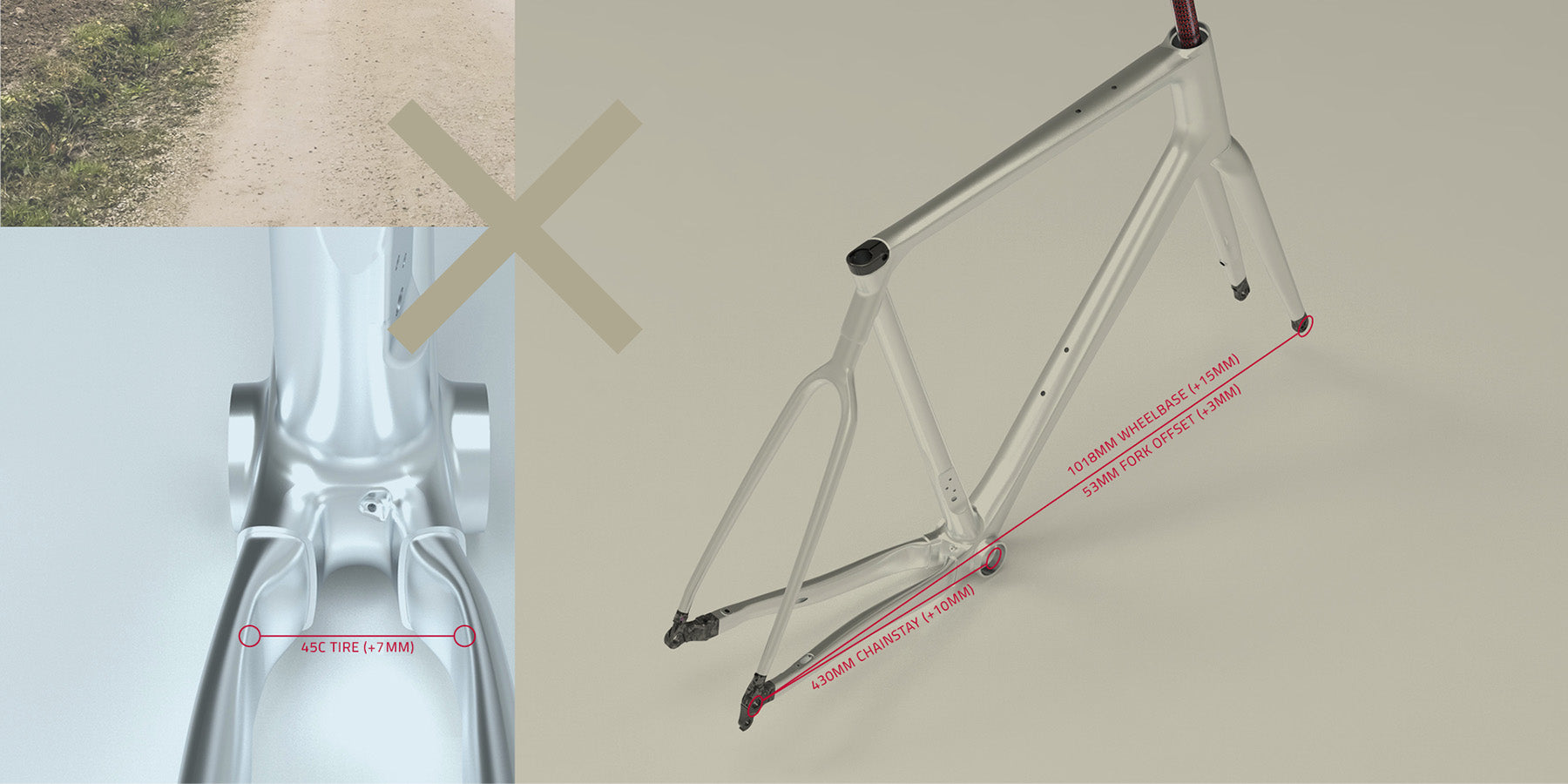

The ADHX 45 is our full on gravel bike with plenty of clearance for rowdy off-road fun. The ADHX 45 has 430mm chainstays and can fit a 45c tire. This is the bike for you if you want to get lost on the back roads.
NEW FEATURE

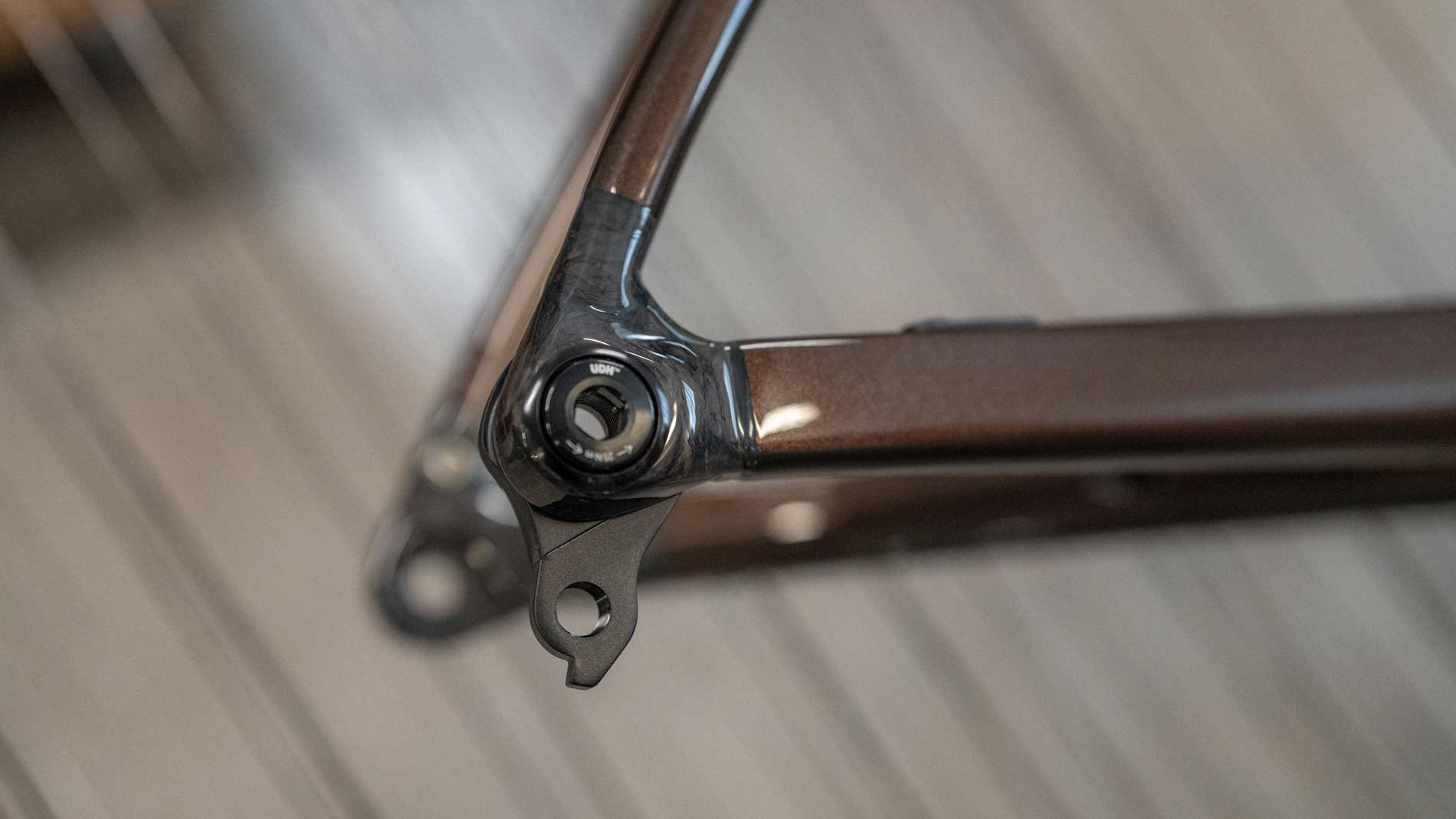

Universal Derailleur Hanger (UDH) Compatibility
We’ve upgraded the ADHX 45 with Universal Derailleur Hanger (UDH) compatibility, bringing even more versatility and ease to your rides. This new industry-standard design ensures smoother shifting performance, and enhances the durability of your drivetrain.
ADHX 45

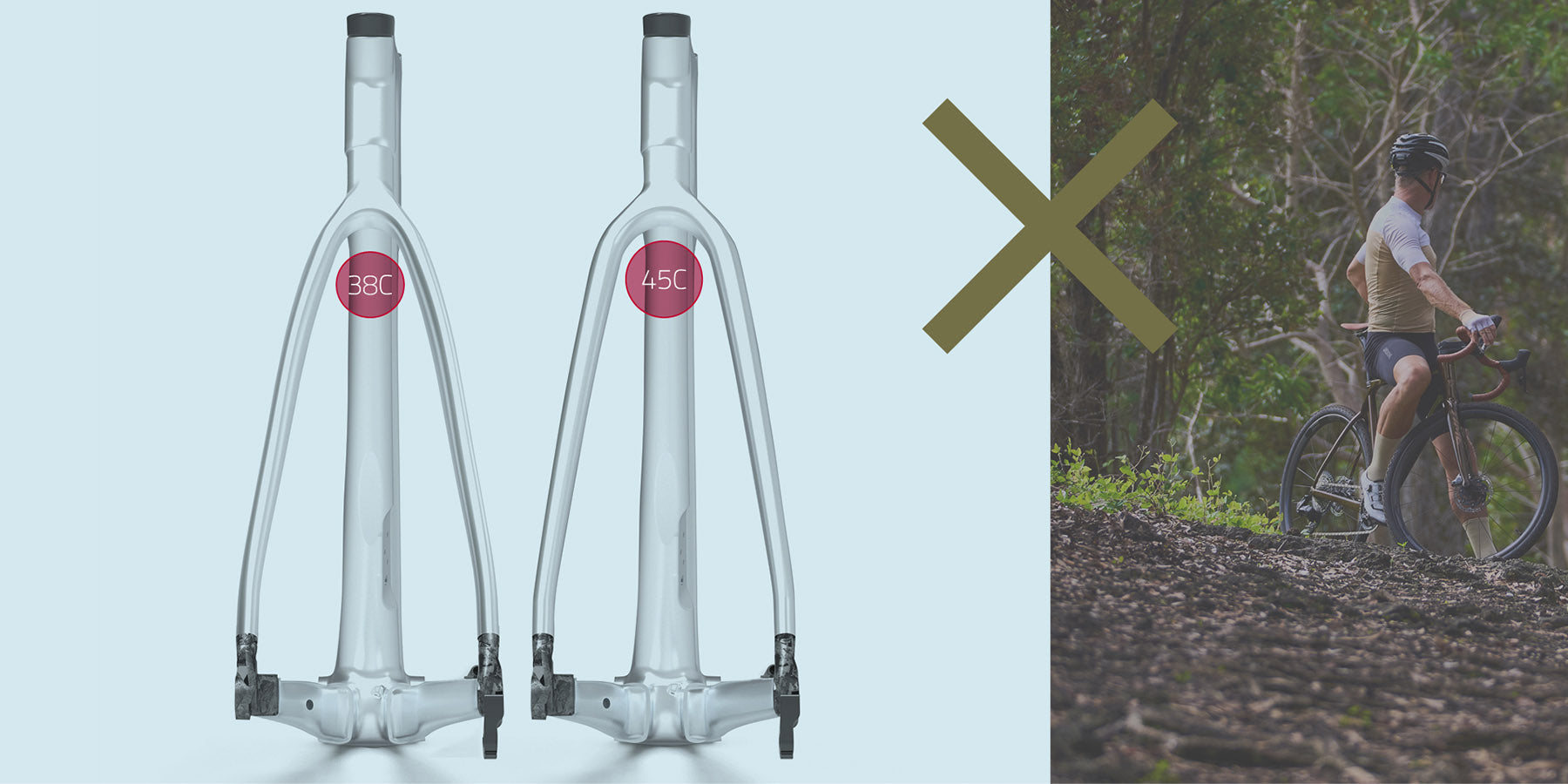

VOLUME, TRACTION & CONTROL
A 45c tire has roughly three times the volume of a 28c tire and about 65% more than a 38c version. More volume allows lower air pressures and better traction, increased comfort and more stability. Additionally, the more aggressive tread patterns available in larger sizes further contribute to grip on uncertain terrain.
FEATURES

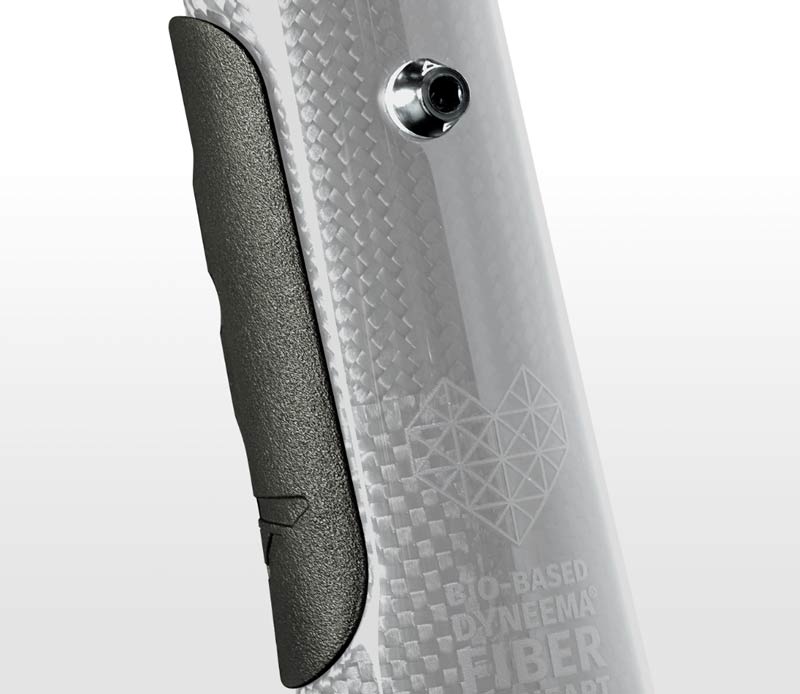

1X Derailleur cover
With the included TIME Derailleur Mount Cover, your 1X setup will look as slick and finished as the rest of your bike. Full compatibility with single and double–ring drivetrains doesn’t mean making a visual compromise.

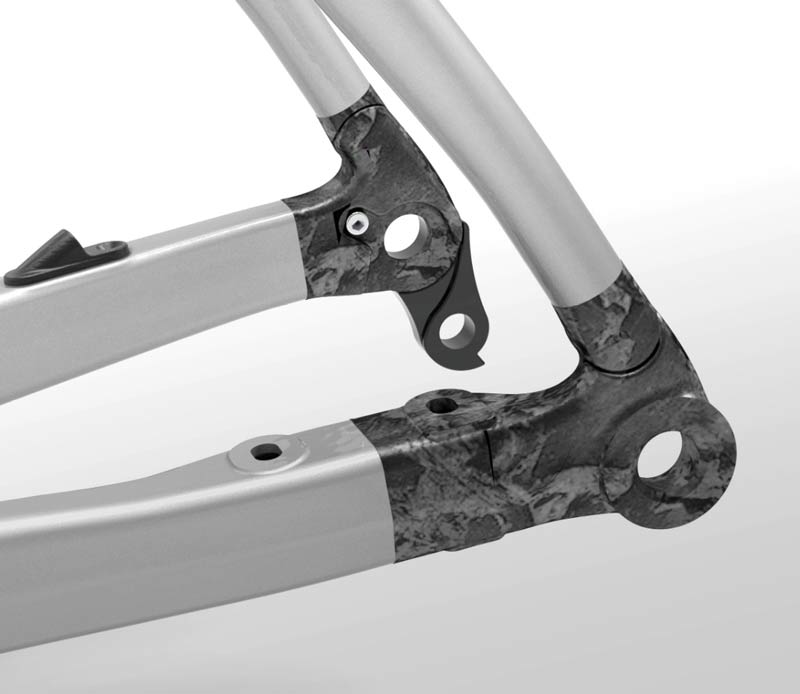

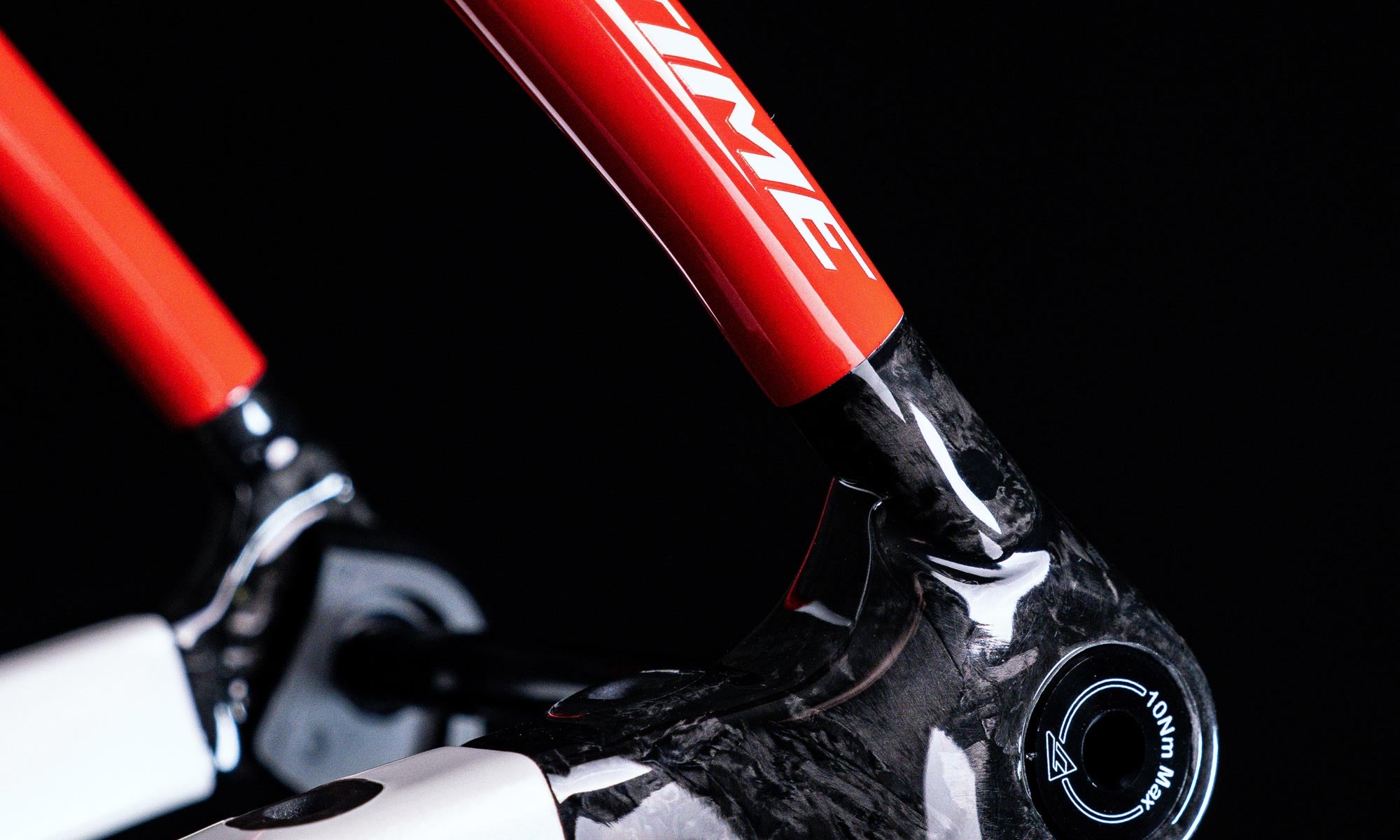

FORGED CARBON
With 20x the fatigue life of steel or alloy, we use forged carbon where others spec heavier aluminum parts. A 60% fiber content allows drilling and threading without cracking, processes that are much more challenging with prepreg construction.

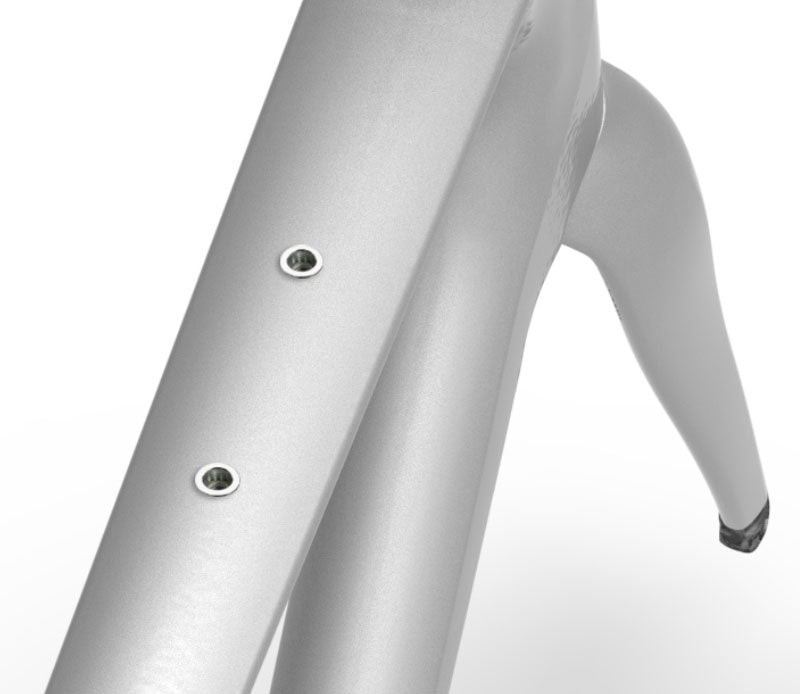

TOP TUBE MOUNT POINT
Frame storage is great, but fingertip access while riding is better. Your ADHX is compatible with bags or mounting systems that use a standard bottle mount.

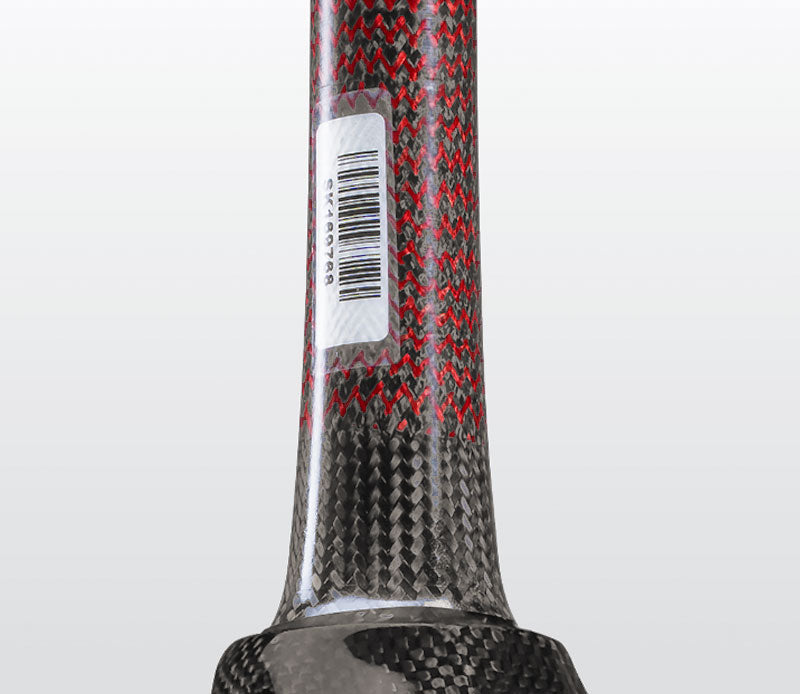

REINFORCED STEERER
Fork steerer tubes must withstand a great deal of stress from riding and clamping forces imparted by the stem. TIME have always reinforced steerers with Kevlar or Vectran fibers to dramatically reduce the risk of total failure and separation in this critical area.
GEOMETRY
FRAME SPECS
| ADHX 45 FRAME SPECIFICATIONS | |
|---|---|
|
FRAME MATERIAL BCS Carbon Fiber - Dyneema® Enhanced |
THRU AXLES 12x121x1.5 Pitch Front 12x170x1.0 Pitch Rear (UDH) |
|
SIZES XS, SM, MD, LG, XL |
SEATPOST DIAMETER ø27.2mm |
|
FORK STEERER TUBE Tapered 1-1/8" to 1-1/2" |
SEATPOST CLAMP Proprietary ADHX 45 Alloy |
|

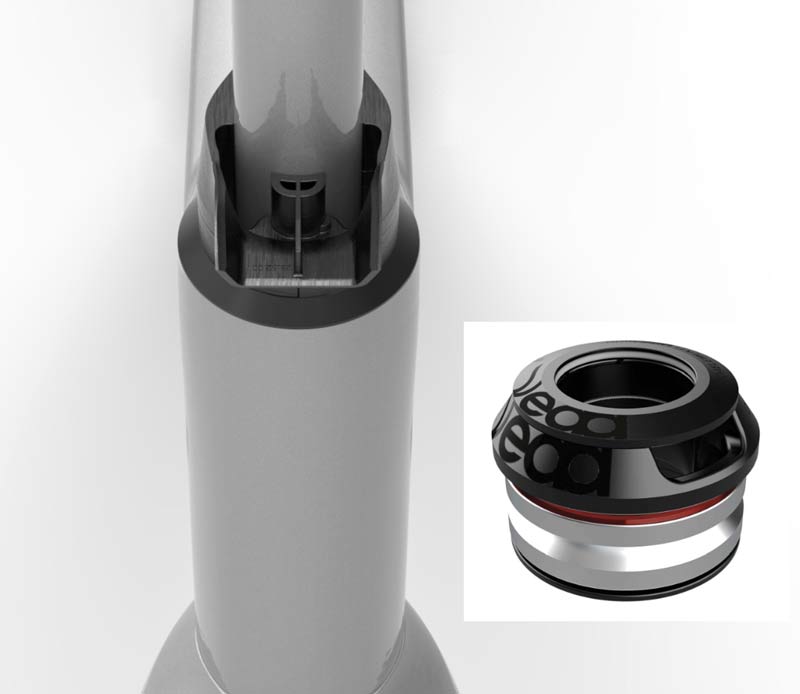

HEADSET BEARINGS Top and Bottom 1-1/2" (with internal routing compression ring) |
SHIFTING Compatible with Electronic and Standard Shifting Systems |
|
WHEEL SIZE 700c/650b |
FRONT DERAILLEUR 1X and 2X Wide Compatible with Integrated Single Cover and Drivetrain Conversion Kit |
MAXIMUM TIRE WIDTH
|
REAR DERAILLEUR Universal Derailleur Hanger, Standard Mount |
|
BOTTOM BRACKET PF BB386 |
BRAKE TYPE Front and Rear Flat Mount Disc |
|
DISC HUB STANDARD 12x100mm F, 12x142mm R |
ROTOR SIZE 140/160mm with Adapter |
