A Legend Reborn
There's glory to be found in the agony of a breakaway, and the sprint will come a few seconds sooner aboard this weapon. SCYLON features a revolutionary new carbon layup technology that blends high-strength and high-modulus carbon and balances performance with the responsiveness and stability needed for all-out efforts. Since its debut in 2014, SCYLON has been our flagship racing platform. The new SCYLON improves aerodynamics, weight, stiffness, strength, and ride quality. It's the ultimate expression of TIME's world-renowned craftsmanship.

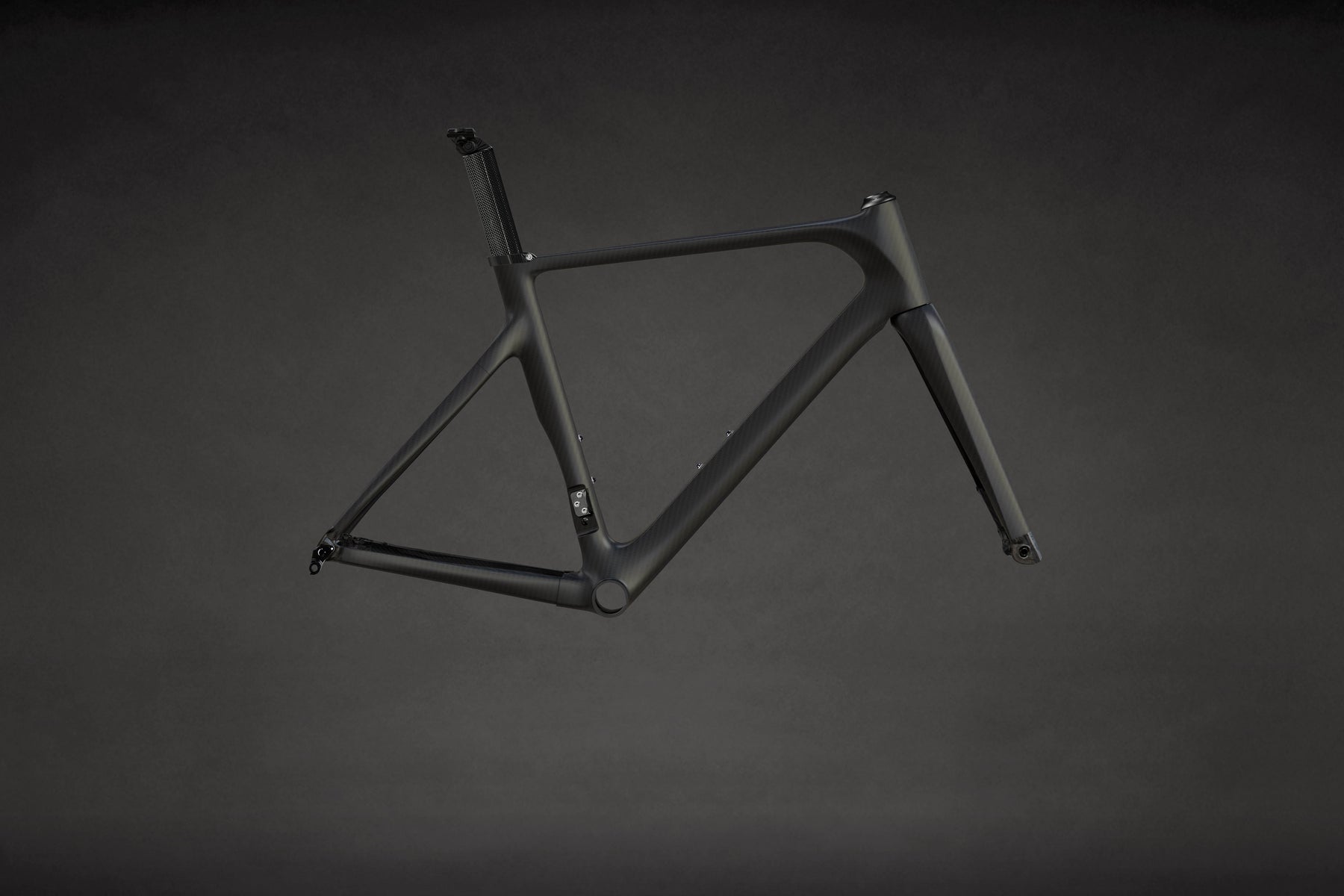

| SCYLON FRAME SPECIFICATIONS |
|
|---|---|
|
FRAME MATERIAL Gen 2 Braided Carbon M46J / T800 Carbon Fiber Layup |

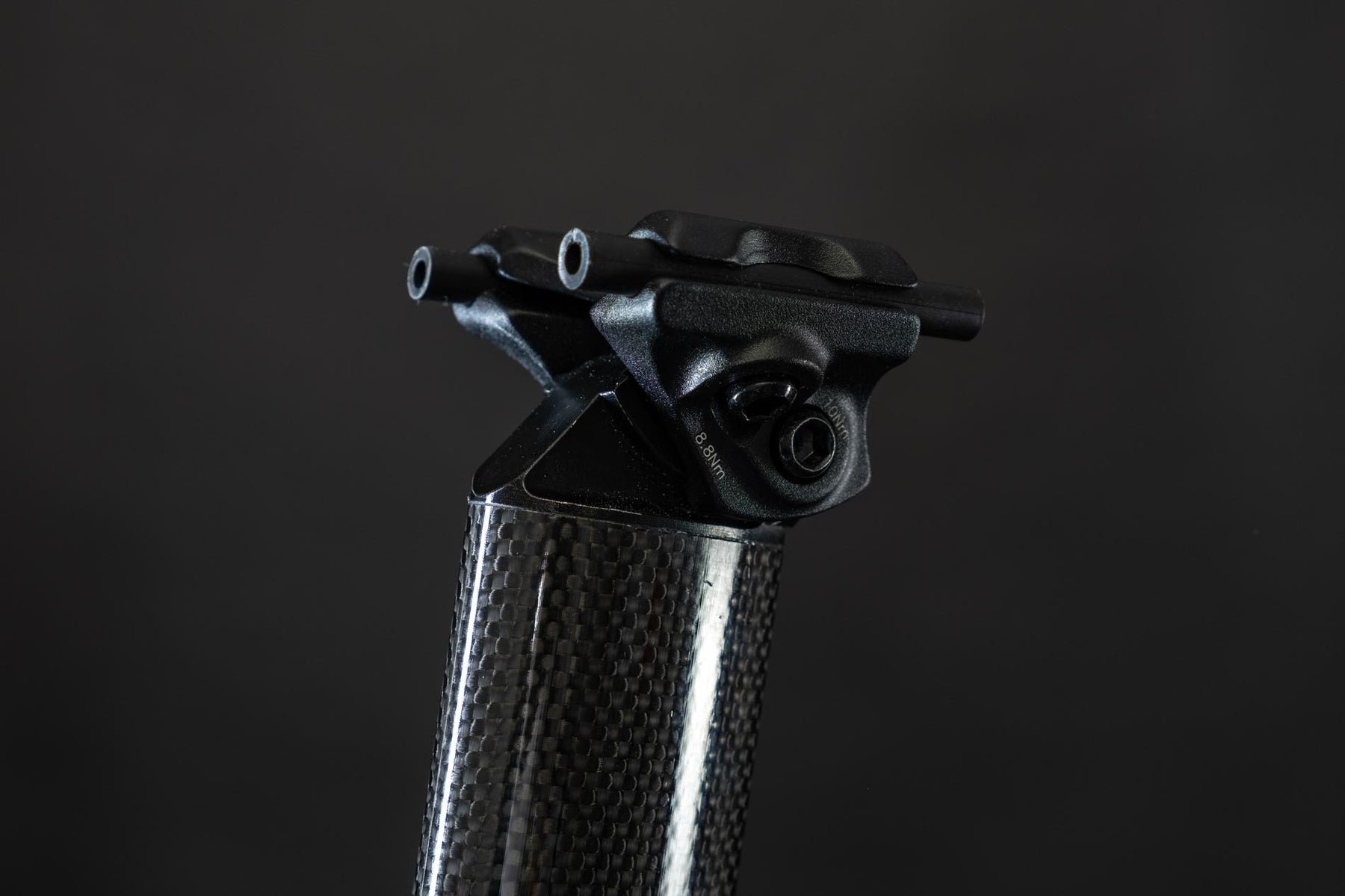

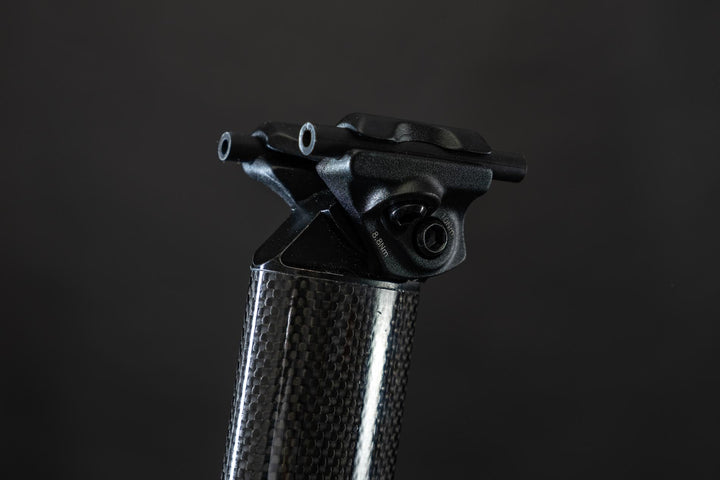

SEATPOST DIAMETER Proprietary SCYLON Aero Carbon, -20/+10mm SB |
|
SIZES XXS, XS, SM, MD, LG, XL |

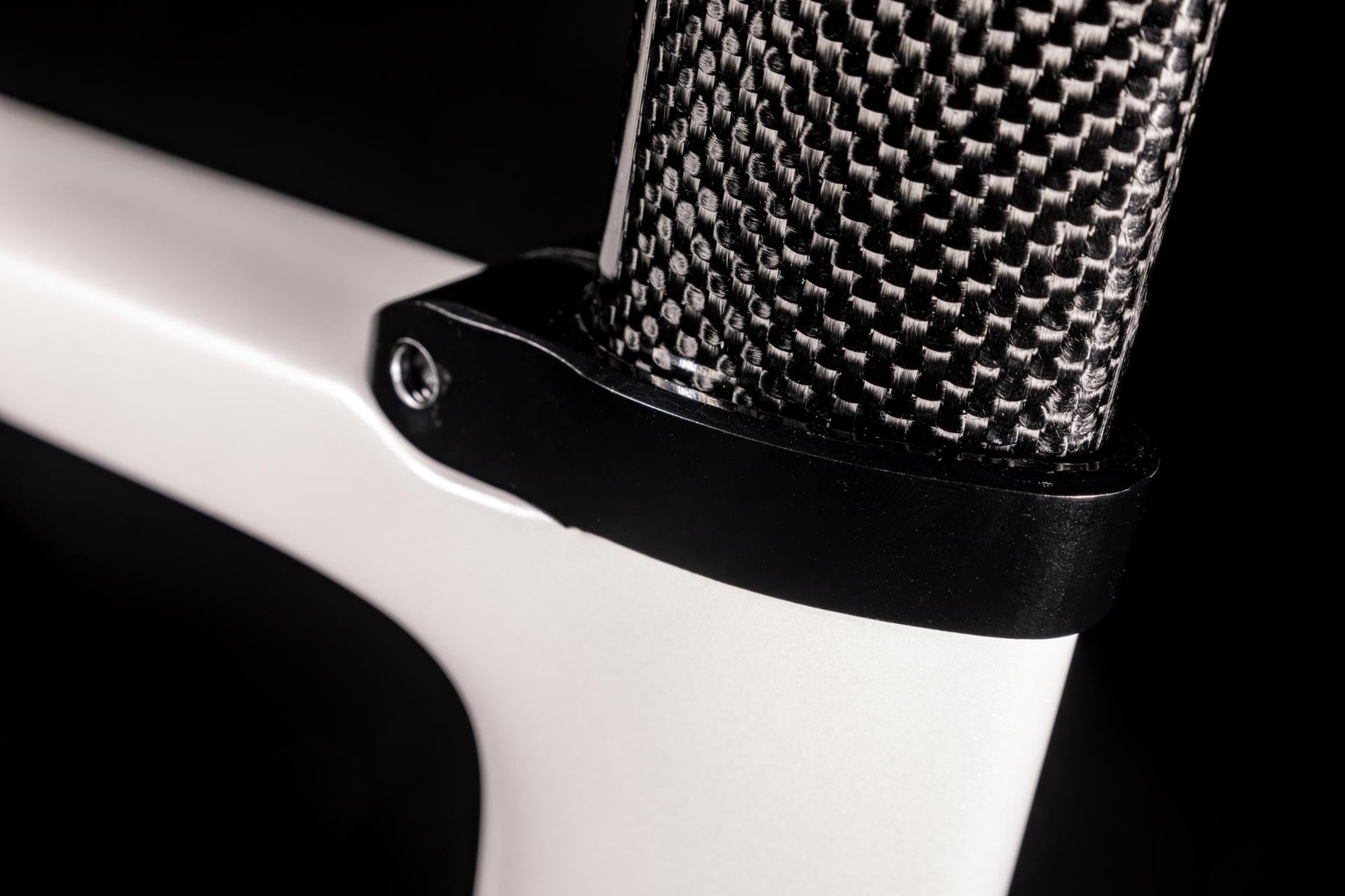

SEATPOST CLAMP Semi-Integrated TIME CNC Alloy |
|

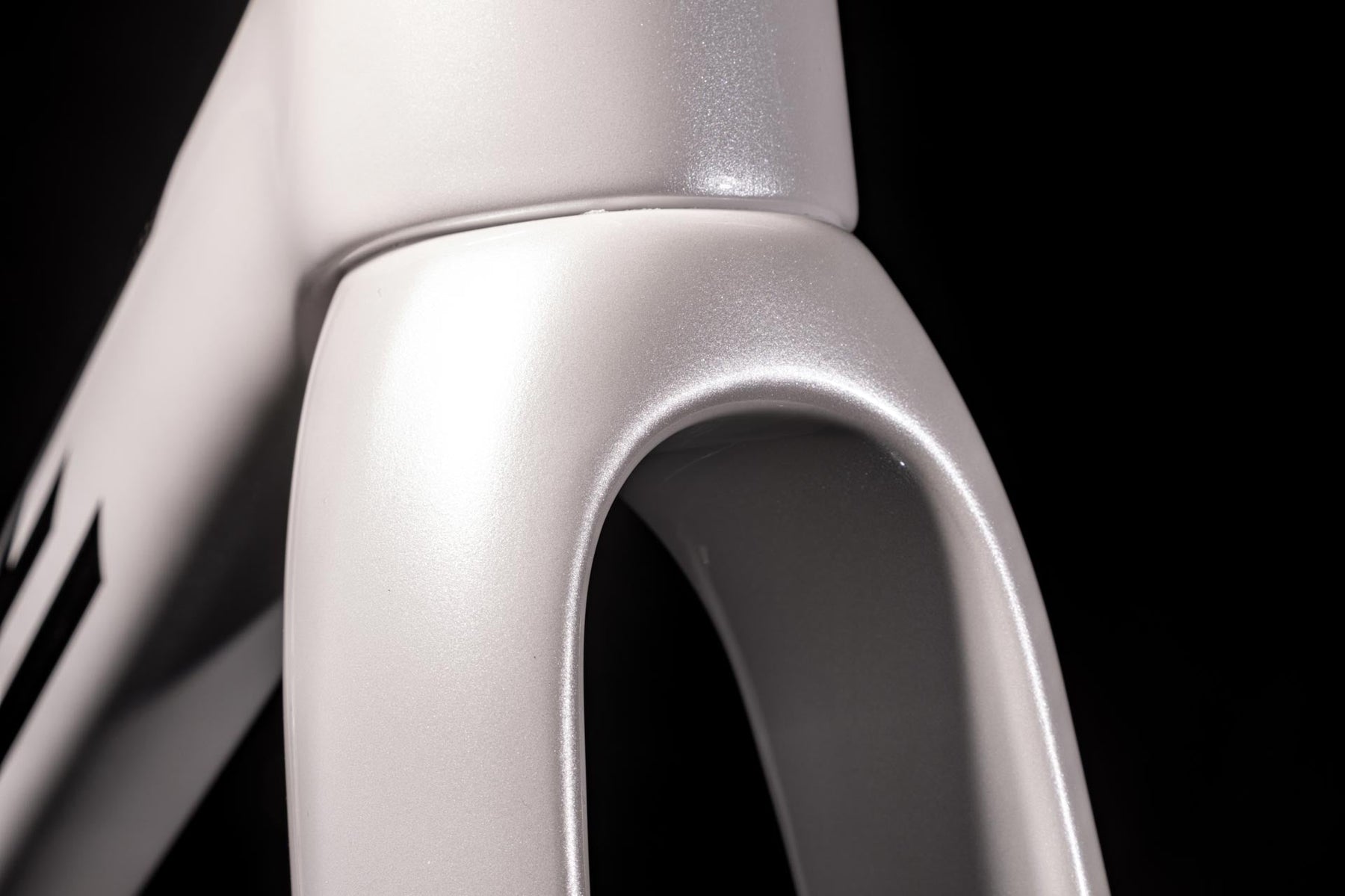

FORK STEERER TUBE Kevlar Enhanced BCS Carbon Fiber - Tapered 1–1/8” to 1–1/2” |
SHIFTING Compatible with all Electronic Shifting Systems |
|
HEADSET BEARINGS FSA NO.69 SRS |
FRONT DERAILLEUR Standard Mount |
|
WHEEL SIZE 700c |
REAR DERAILLEUR Standard Mount |
|
MAXIMUM TIRE WIDTH 700x32 |
BRAKE TYPE Front and Rear Flat Mount Disc |
|

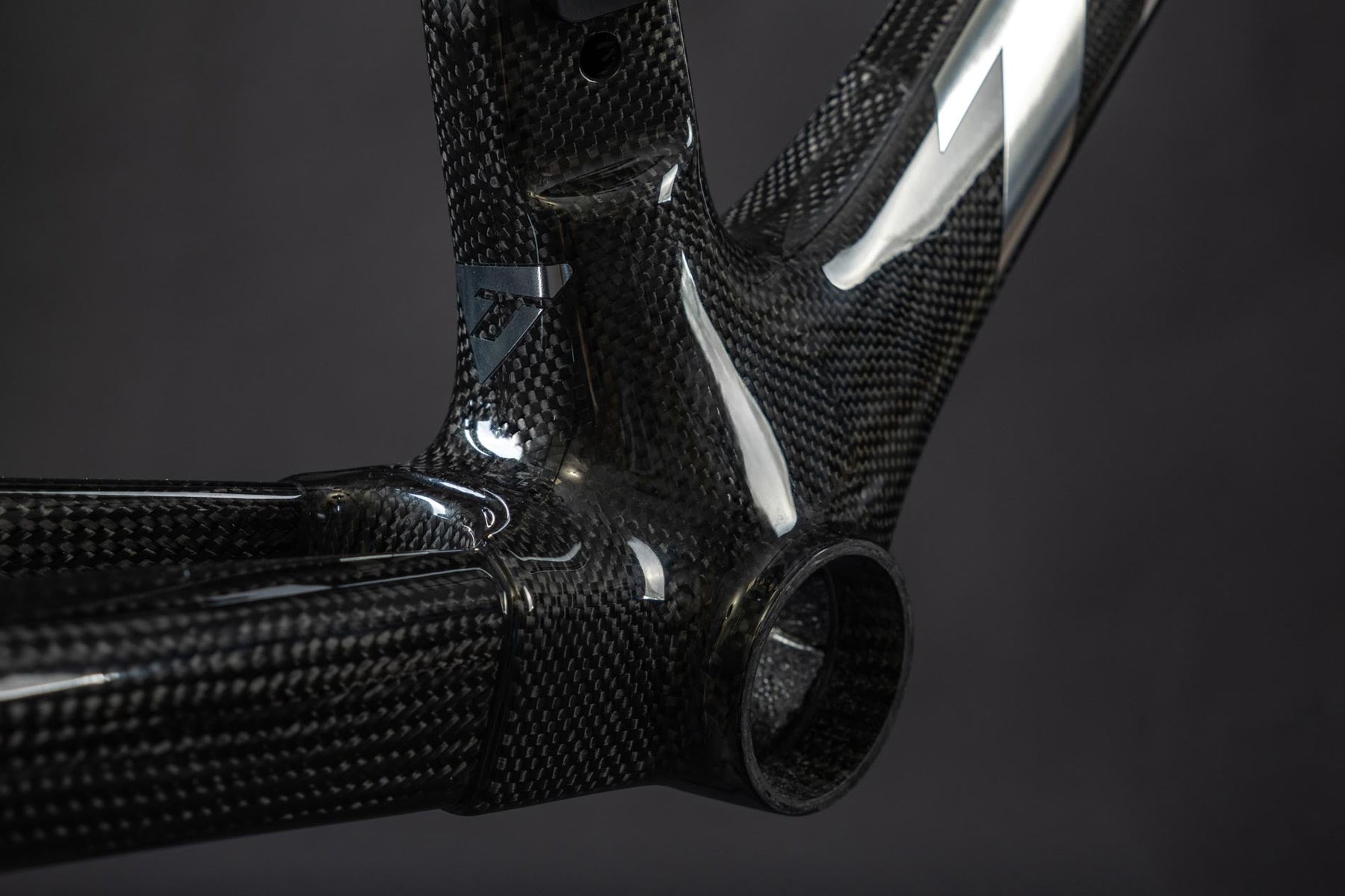

BOTTOM BRACKET PF 386 EVO |
ROTOR SIZE 140/160mm with Adapter |
|

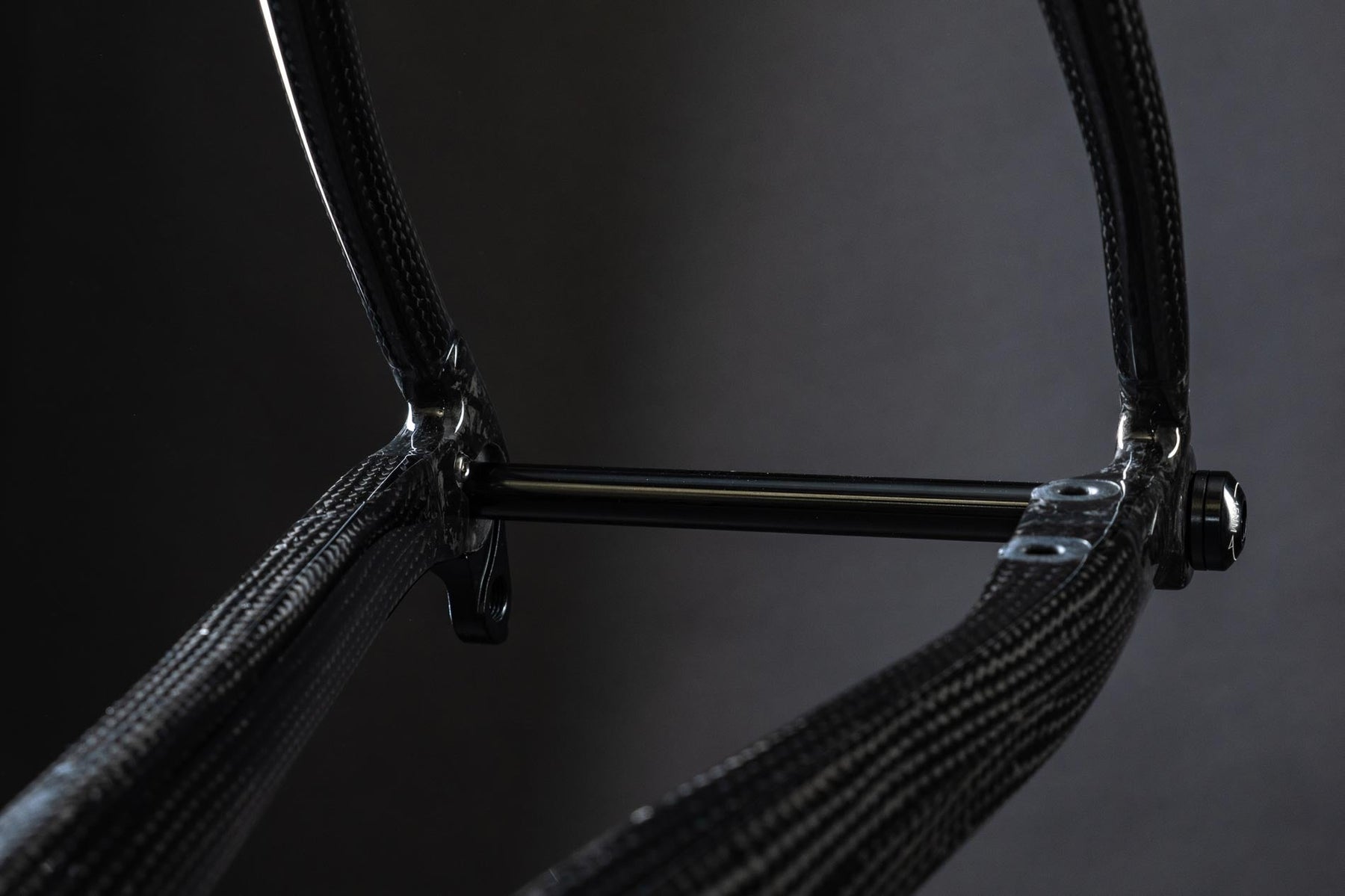

THRU AXLES 12x120x1.5mm pitch Front, 12x159x1.5mm pitch Rear |
TORQUE SPECS Thru Axles: 10nm Seat Clamp: 4-5nm FD cover/plate: 3nm Disc caliper mounts: 6-7nm |
| WHAT'S INCLUDED |
|
|---|---|
|
FSA Headset/SRS Topcap for Semi & Fully-Integrated Cockpits |
Front and Rear Thru Axles |
| Alloy Bottle Bolts | Semi-Integrated Seatpost Clamp |
| Scylon Aero Seatpost |

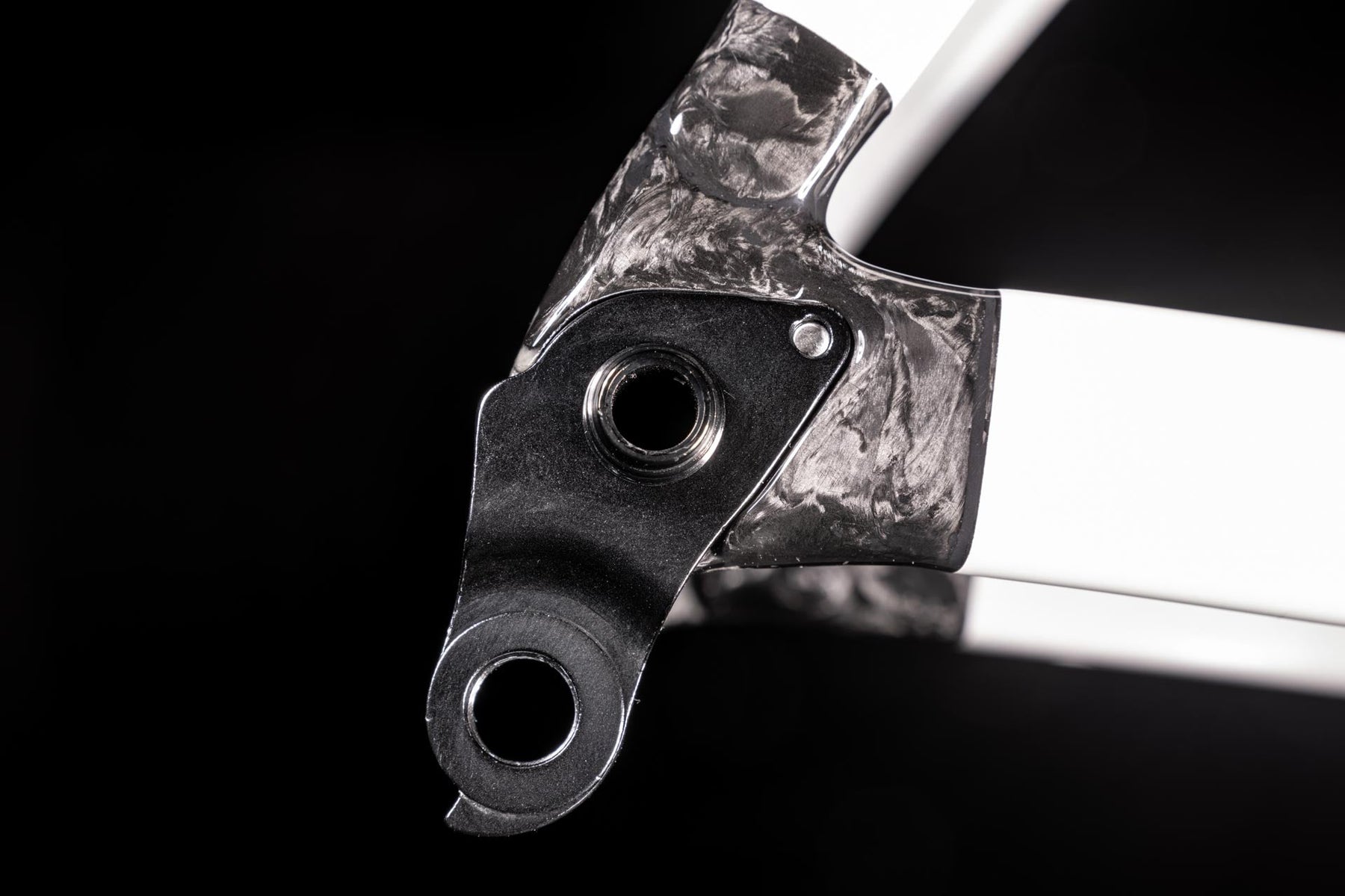

Front and Rear Derailleur Hangers |

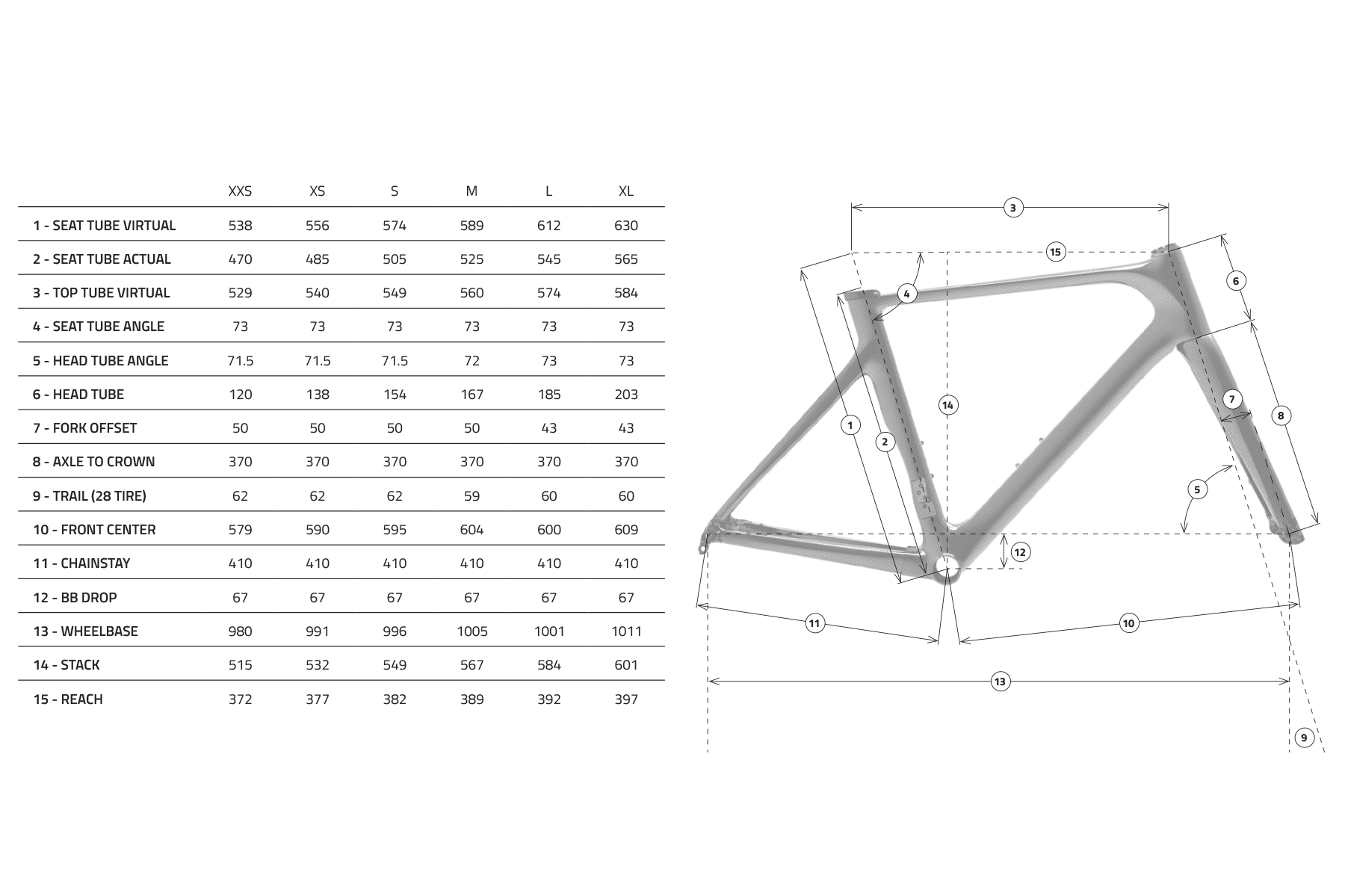

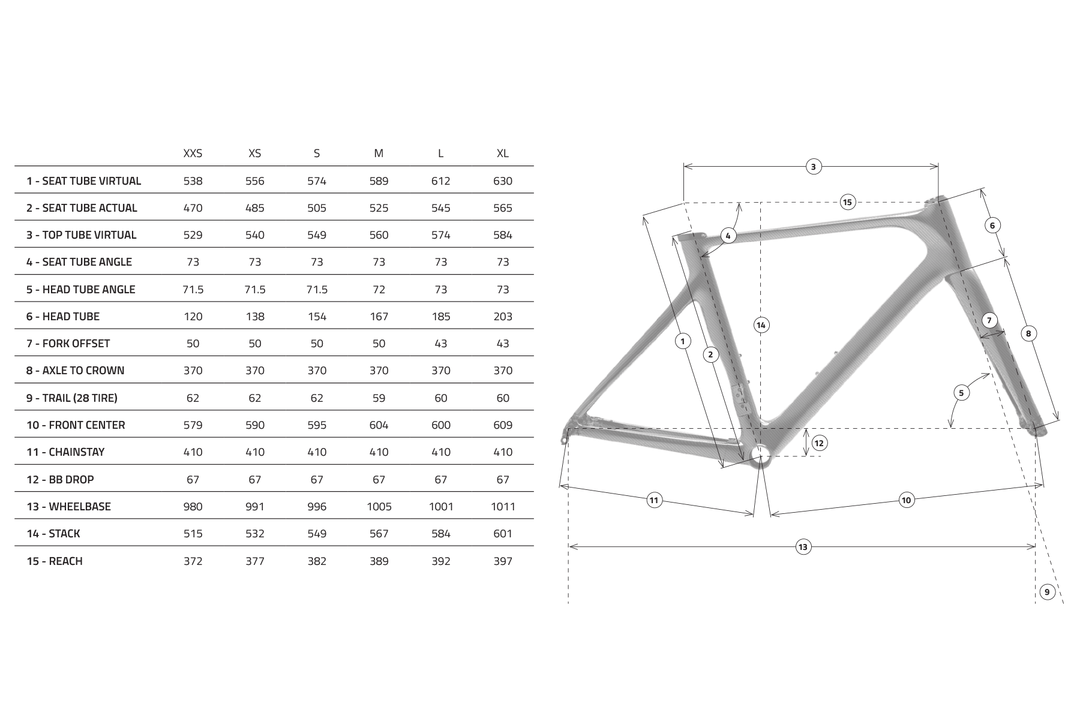

Geometry
